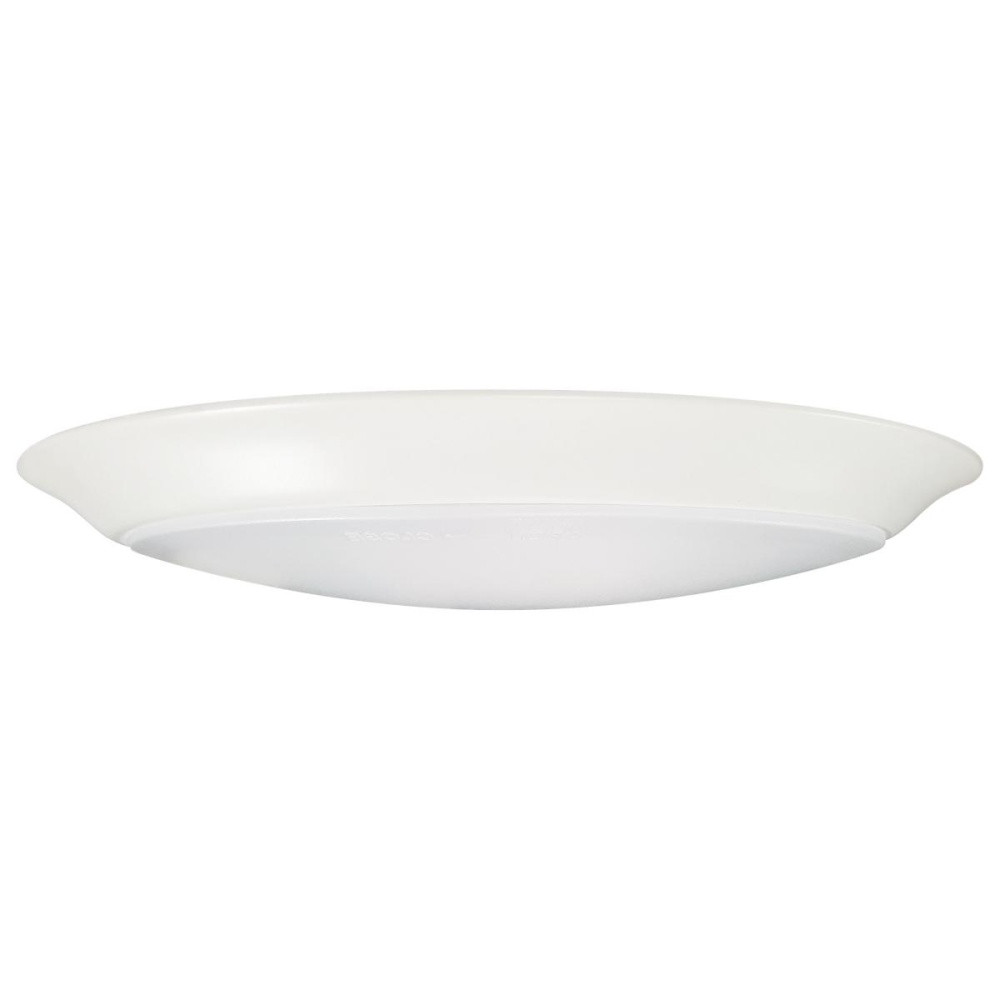

9.8 Watt; 10 Inch LED Disk Light; 27K/3K/35K/4K/5K CCT Selectable; White Finish

Image may not reflect selected features

9.8 Watt; 10 Inch LED Disk Light; 27K/3K/35K/4K/5K CCT Selectable; White Finish (AD6MU)

9.8 Watt; 10 Inch LED Disk Light; 27K/3K/35K/4K/5K CCT Selectable; White Finish

Product Specification

Item #

AD6MU

Dimensions

Height: 1.56"

Width: 9.49"

Additional product details

Internal #

AD6MU

Category

Close-to-Ceiling

Sub Category

LED Disk

Style

Contemporary

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm White to Natural Light

Diameter

9.49

Dimmable

Yes-Dimmable

Each Height

9.609999999999999

Each Length

9.609999999999999

Each Width

1.69

Lumens

900L

Tariff Code

9405.11.8020

Warranty

5-Years

Amps

0.122A

ANSI Base

Integrated

BAA Compliant

Beam Angle

110

CA Prop-65

Lead

CCT Selectable

Yes

CEC

California T24 2016 - 2025 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Closet Rated

Yes

Connection

Hardwire

Country Of Origin

Thailand

CRI

Dimmable Down To

100 to 10 percent

Dimming Type

Triac

Each Cube

0.09030000000000001

Each Quantity

Efficacy

91.84 LPW

ES Category

Downlight Surface Mount

ES Unique ID

ESID-4005966

FCC Compliant

Yes

Feature 1

5 CCT Selectable (2700K to 5000K)

Feature 2

NEC410.16(A)(3) & NEC410.16(C)(5) Certified for closet use

Feature 3

Steel Body with Polycarbonate Lens

Feature 4

10-Inch Round, White Finish

Feature 5

90 CRI High Quality Illumination

Feature 6

Dimmable

Feature 7

Wet Location Rated

Feature 8

50,000 Hour Functional Life

Feature 9

5 Year Warranty

Finish Family

White

Fixture shape

Round

Has Camera

Has Emergency Battery

Incandescent Equivalent

60W

Indoor Outdoor

Indoor

IOT Enabled

JA8 Compliant

Yes

Lens Finish

White

Lens Material

Polycarbonate (PC)

Long Description

Engineered for safety and performance, SATCO NUVO's 62-1815R1, NEC Compliant CCT Selectable Disk Light in a 10" white design is certified for use in clothes closets, meeting NEC 410.16(A)(3) and 410.16(C)(5) requirements. This fixture consumes just

Material

Steel

Mounting Procedure

Ceiling/Wall

NEC Compliance

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency

60Hz

Operating Temp

-20C (-4F) to +40C (+104F)

Order In Multiples Of

Pack Type

Color Box

Power Factor

0.9

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Versatile, stylish, and built to perform, SATCO NUVO's CCT Selectable Disk Lights bring both function and flair to modern interiors. Available in 7" and 10" sizes and offered in four designer finishes-white, black, brushed nickel, and bronze-th

Safety Listing

cETLus

Short Description

10" LED 9.8W DISK LIGHT WHITE

Sloped Ceiling Compatible

Yes

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Exempt

Title 24 Compliant

Yes

Wattage Selectable

Weight Lb.

1.08
